When it comes to solar photovoltaic (PV) systems, regular operation and maintenance are key to ensuring optimal energy production and system longevity. One essential part of that maintenance involves verifying accurate voltage and current readings throughout the system.
Low current detected in a cable can often point to deeper issues—such as a malfunctioning panel or a wiring fault. That’s why it’s crucial to periodically inspect your PV system, especially at key points like the inverter input and output. These values should consistently align with system specifications.
A True RMS AC/DC Clamp Meter is a practical and powerful tool for supporting the operation and maintenance of solar PV systems. It provides real-time data that enables informed decision-making and efficient troubleshooting
What is a True RMS AC/DC Clamp Meter?
A True RMS AC/DC Clamp Meter is a versatile instrument that allows users to monitor current flow from solar panels or battery systems, measure voltage at key points such as panels, inverters, and battery connections, confirm DC output from PV modules, and verify that the inverter’s AC output aligns with system specifications. It also aids in diagnosing issues like shading, panel imbalances, or faulty strings.
By routinely performing these checks, solar technicians can catch small issues before they become major performance setbacks. It’s a simple yet powerful way to keep solar energy systems running clean, safe, and efficient.

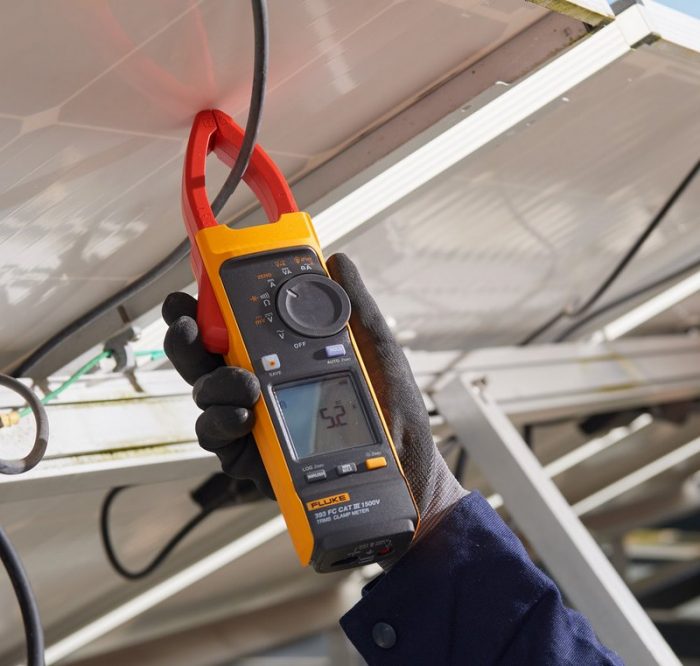

Source : Fluke

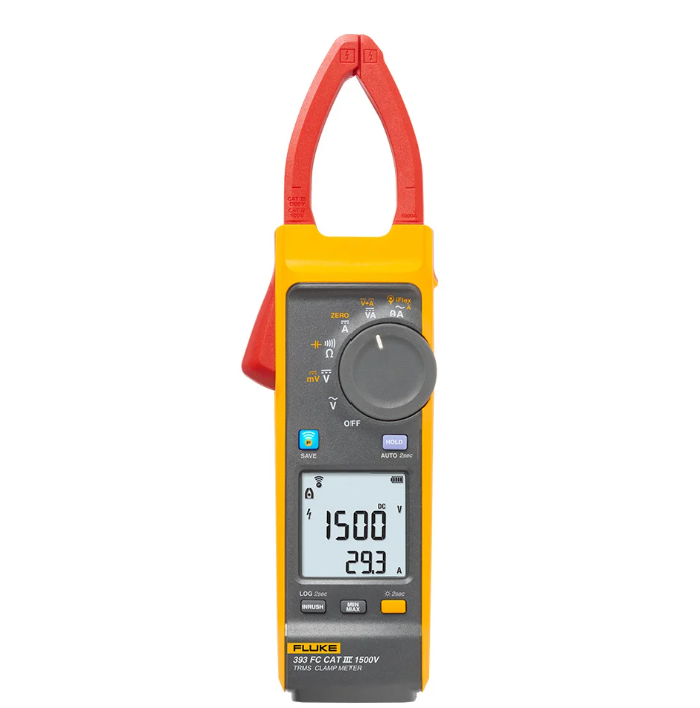

Source: SolarBuilder
Why Facility Managers Should Monitor Solar Panels:
- Identify and diagnose issues early: Monitor faulty inverters, unexpected voltage drops or wiring connection failures.
- Plan maintenance: Data trends over time can inform you when panels need cleaning or repair.
- Maximize energy: Get real-time solar output, identify panels that are under-performing due to shading, dirt or degradation.
Benefits of Using a Solar Clamp Meter on PV systems
- Non-Invasive current measurement: The clamp meter allows you to measure AC or DC current without disconnecting or interrupting power to the panels.
- Confirm Installation Quality: It’s crucial to confirm the installation was done properly, measure current flow in all strings, any loose wires.
- Ensure Safety Compliance: Ensure there is no unsafe current leakage.
